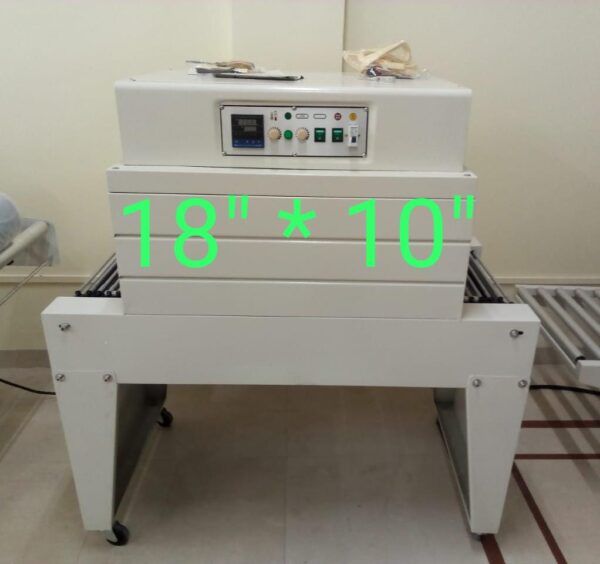

Imported Shrink Tunnel
- BS-A450 thermal shrink packaging machine is suitable for shrink films such as POV, PVC, PP, POF, etc. There are shrinking tubes on the top, bottom and sides of the shrinking area. The temperature of the shrinking area and the speed of the conveyor are adjustable. And the size of the machine can be customized.
⦁ Compact construction, high efficiency;
⦁ The use of infra-red Quartz heater tube reduces the power consumption;
⦁ Strong air-flow ensures excellent heat distribution for an even shrinking;
⦁ The temperature controlling system makes the operation easily;
⦁ The speed of the conveyor is adjustable.
| Model | BS-A450 |
| Voltage | 380V /3PH 50-60Hz |
| Power | 9KW |
| Conveyor speed | 0-10m/min |
| Tunnel size(L*W*H) | 830*450*250mm |
| Conveyor loading | 10kg |
| Machine size (L*W*H) | 1200*650*1300mm |
| Heater type | Quartz heater |
| Heater size | 370mm*15 |
